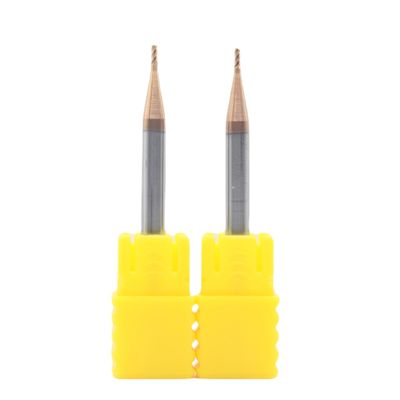

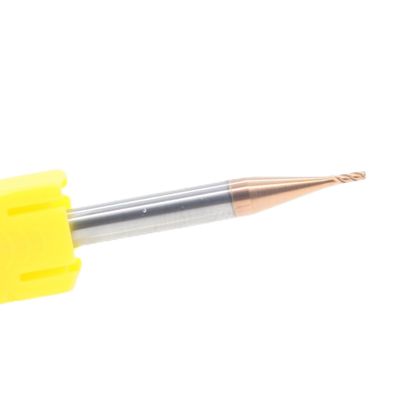

2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron

2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron
2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron
video play

Duży Obraz :  2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: BABOS
Model Number: 2*5*4*50-4F
Zapłata:
Minimum Order Quantity: 10pcs
Cena: negocjowalne
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20,000PCS per month
Kontakt
Szczegółowy opis produktu
Cut Diameter: 2mm Cut Length: 5mm
Overall Length: 50mm Flute Number: 4
Coating/Finish Type: TiSiN Sample Order: Accepted
Customize: Available

2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron



Key Specifications:

  • Cutting Diameter: 2mm
  • Flute Length: 5mm
  • Shank Diameter: 4mm
  • Overall Length: 50mm
  • Flutes: 4
  • Geometry: Square End (Flat End)
  • Coating: TiSiN (Titanium Silicon Nitride) – offers strong wear resistance, high oxidation threshold (~1,000 °C), and low friction for extended tool life
  • Carbide grade: HRC 55–rated micro-grain carbide – excellent toughness and hardness for machining up to 55 HRC




Performance & Typical Applications:

  • Finishing & precision milling: 4 flutes deliver smooth surfaces and tight corner clean-up
  • Face and shoulder milling, pocketing, profiling – suitable for small features and detailed work
  • High-speed CNC machining – TiSiN coating allows faster speeds with minimal wear
  • Tough material operations – micro-grain carbide cuts hardened steel and cast iron reliably





Usage:

  • Face and shoulder milling for clean, flat surfaces
  • Pocketing and profiling at high speeds
  • General‑purpose machining of steels, cast irons, mold steels, stainless, and copper alloys
  • Capable of medium-duty to heavy machining in hardened steels (≤ HRC 55)



2mm Dia 2*5*4*50 TiSiN Coated 4 Flute Carbide Square End Mill for Carbon Steel Alloy Steel Cast Iron 0



 2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*8*3*50 3 8 3 50 2 / 4
3*12*3*75 3 12 3 75 2 / 4
3*15*3*100 3 15 3 100 2 / 4
1*3*4*50 1 3 4 50 2 / 4
1*3*4*75 1 3 4 75 4
1.5*4*4*50 1.5 4 4 50 2 / 4
1.5*4*4*75 1.5 4 4 75 4
2*5*4*50 2 5 4 50 2 / 4
2*5*4*75 2 5 4 75 4
2.5*7*4*50 2.5 7 4 50 2 / 4
2.5*7*4*75 2.5 7 4 75 4
3*8*4*50 3 8 4 50 2 / 4
3*8*4*75 3 8 4 75 4
3.5*10*4*50 3.5 10 4 50 2 / 4
4*10*4*50 4 10 4 50 2 / 4
4*16*4*75 4 16 4 75 2 / 4
4*20*4*100 4 20 4 100 2 / 4
5*13*5*50 5 13 5 50 2 / 4
5*20*5*75 5 20 5 75 2 / 4
5*25*5*100 5 25 5 100 2 / 4
1*3*6*50 1 3 6 50 2 / 4
1.5*4*6*50 1.5 4 6 50 2 / 4
2*5*6*50 2 5 6 50 2 / 4
2.5*7*6*50 2.5 7 6 50 2 / 4
3*8*6*50 3 8 6 50 2 / 4
3.5*10*6*50 3.5 10 6 50 2 / 4
4*10*6*50 4 10 6 50 2 / 4
4*12*4*50 4 12 4 50 4
4.5*12*6*50 4.5 12 6 50 2 / 4
5*13*6*50 5 13 6 50 2 / 4
5.5*15*6*50 5.5 15 6 50 2 / 4
6*15*6*50 6 15 6 50 2 / 4
6*18*6*50 6 18 6 50 4
6*25*6*75 6 25 6 75 2 / 4
6*30*6*100 6 30 6 100 2 / 4
6*40*6*150 6 40 6 150 2 / 4
7*18*8*60 7 18 8 60 2 / 4
8*20*8*60 8 20 8 60 2 / 4
8*24*8*60 8 24 8 60 4
8*28*8*75 8 28 8 75 2 / 4
8*35*8*100 8 35 8 100 2 / 4
8*50*8*150 8 50 8 150 2 / 4
9*23*10*75 9 23 10 75 2 / 4
10*25*10*75 10 25 10 75 2 / 4
10*30*10*75 10 30 10 75 4
10*40*10*100 10 40 10 100 2 / 4
10*50*10*100 10 50 10 100 4
10*50*10*150 10 50 10 150 2 / 4
11*28*12*75 11 28 12 75 2 / 4
12*30*12*75 12 30 12 75 2 / 4
12*36*12*75 12 36 12 75 4
12*45*12*100 12 45 12 100 2 / 4
12*50*10*100 12 50 12 100 4
12*60*12*150 12 60 12 150 2 / 4
14*35*14*80 14 35 14 80 2 / 4
13*45*14*100 13 45 14 100 2 / 4
14*45*14*100 14 45 14 100 2 / 4
14*60*14*150 14 60 14 150 2 / 4
15*45*16*100 15 45 16 100 2 / 4
16*45*16*100 16 45 16 100 2 / 4
16*60*16*150 16 60 16 150 2 / 4
18*45*18*100 18 45 18 100 2 / 4
18*70*18*150 18 70 18 150 2 / 4
20*45*20*100 20 45 20 100 2 / 4
20*70*20*150 20 70 20 150 2 / 4



Packaging and Shipping:


• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.

• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.

• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.



Notes:


• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.

• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
